SERVER

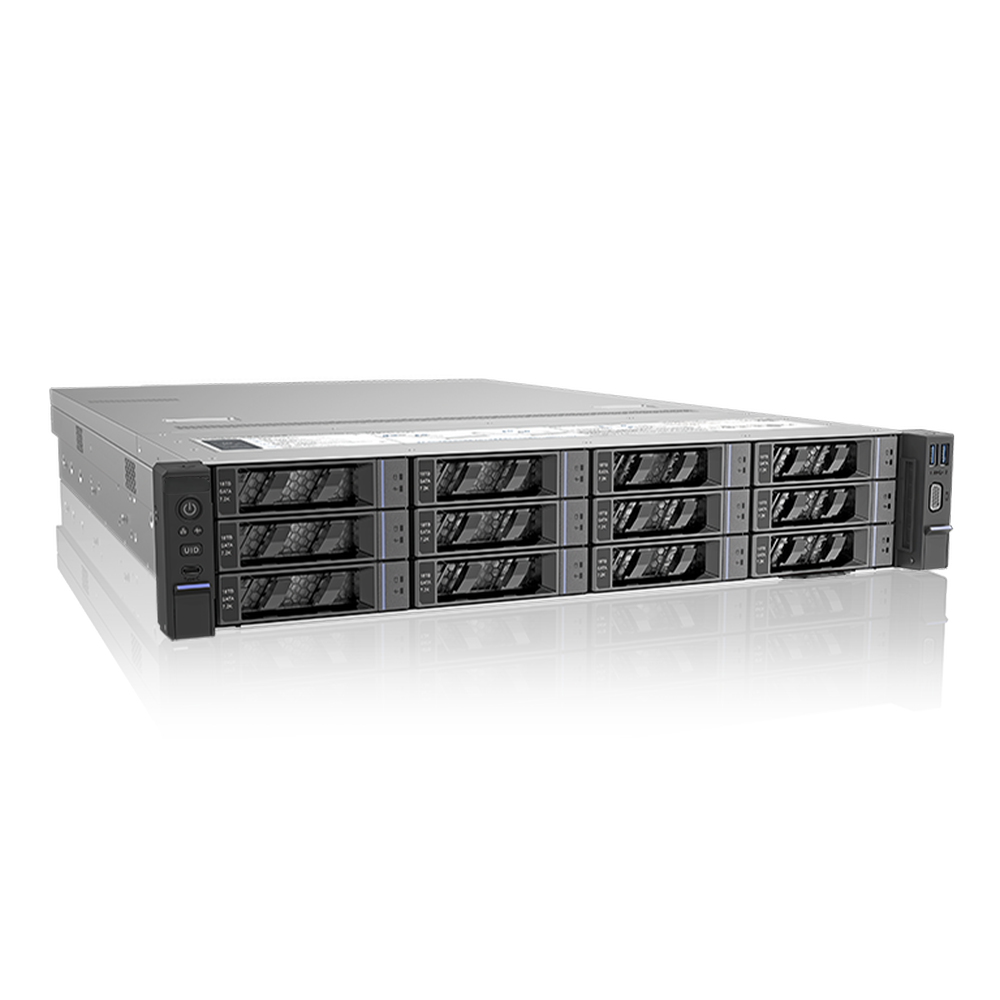

EC-R420 G50
The EC-R420 G50 is a 2U rack server powered by 4th or 5th Gen Intel® Xeon® Scalable processors, offering flexible performance and scalability. It is designed to strike a balance between performance and cost, meeting the diverse needs of a wide range of customers. Ideal for application scenarios such as cloud computing, virtualization, big data processing, and office systems.
Products Specification
Processor | Supports 2*4th/5th Gen Intel® Xeon® Scalable Processors . |
Memory | 16*DDR5 slots, up to 5600MHz. Supports multiple protection modes such as memory ECC and memory mirroring. |
Storage Controller | Supports RAID 0/1/10/5/50. When configuring RAID control, it can support Cache supercapacitor protection, provide RAID level migration, disk roaming, self diagnosis, web remote settings and other functions, and support RAID secure boot. |
Local Storage | Max 12*3.5″ or 14*2.5″ drives (12x NVMe compatible). Internal: 2* M.2 |
Network Interfaces | Onboard 2*Gigabit RJ45 interfaces 1*OCP 3.0 slot with NCSI. |
PCIe Expansion | 7*PCIe 5.0 slots . |
Additional Interfaces | Rear: 1*RJ-45 management port, 2*USB 3.0, 1*VGA. Front: Optional 2*USB 3.0 + VGA or USB 2.0 |
Power Supply | 800W/1300W/2000W/2200W CRPS Titanium/Platinum PSU (hot-swappable, 1+1 redundant). Voltage: 100-240Vac (refer to nameplate). |
Fans | 3*hot-swappable fans. |
Management | Integrated BMC with 1Gbps RJ-45 port. Supports Redfish, SNMP, IPMI 2.0, HTML5/iKVM remote control. BMC dual-flash backup. |
OS Support | Windows Server, RHEL, SLES, CentOS, Ubuntu, VMware ESXi, Kylin, RedFlag, etc. |
Operating Temperature | 5°C ~ 45°C |
Chassis Dimensions | 723mm (L)* 482mm (W)*87mm (H). (with ears) |
Packaging Dimensions | 1000mm (L)*600mm (W)*260mm (H). |
Weight | Max 40kg (varies by configuration). |
