SERVER

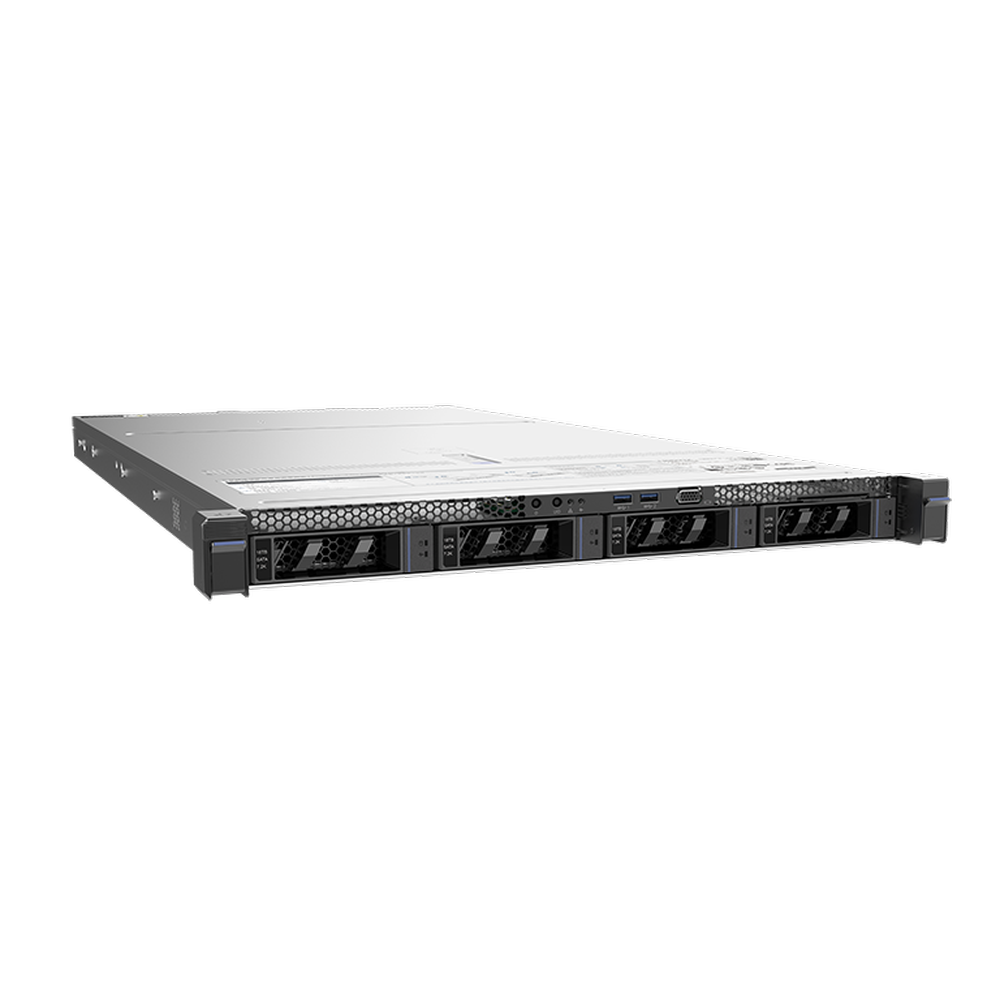

EC-R610 G50
The EC-R610 G50 is a 1U dual-socket high-density rack server equipped with 4th/5th Gen Intel® Xeon® Scalable processors. It integrates performance, density, and scalability to double data center computing density and space utilization, significantly reducing operational costs. Ideal for cloud computing and data processing scenarios.
Products Specification
| Processor | Supports 2*4th/5th Gen Intel® Xeon® Scalable Processors. |
| Memory | 32*DDR5 slots, up to 5600MHz. Supports memory mirroring, hot spare, fault isolation, and CXL expansion (additional 16 slots). |
| Storage Controller | Supports RAID 0/1/10/5/50/6/60. RAID controller features cache supercapacitor protection, disk roaming, remote Web configuration, and secure boot. |
| Local Storage | Max 4*3.5″ or 10*2.5″ hot-swappable drives (NVMe compatible). Internal: 2*SATA/PCIe M.2, 1*onboard EMMC. |
| Network Interfaces | 1*OCP 3.0 slot with NCSI. Optional OCP 3.0 interfaces: 2*1GE, 2*10GE, 2*25GE, 2*100GE, 2*200GE. |
| PCIe Expansion | 2*PCIe 5.0 slots + 1*OCP 3.0 slot. |
| Additional Interfaces | Rear: 1*RJ-45 management port, 2*USB 3.0, 1*VGA. Front: 2*USB 3.0. Internal: 1*USB 3.0. |
| Power Supply | 1300W/2000W/2200W CRPS Platinum PSU (hot-swappable, 1+1 redundant). Voltage: 100~240Vac (refer to nameplate). |
| Fans | 8*hot-swappable fans (N+1 redundancy). |
| Management | Integrated BMC with 1Gbps RJ-45 port. Supports Redfish, SNMP, IPMI 2.0, HTML5/iKVM remote control. BMC dual-flash backup. |
| OS Support | Windows Server, RHEL, SLES, CentOS, Ubuntu, VMware ESXi, Kylin, RedFlag, etc. |
| Operating Temperature | 5°C ~ 45°C |
| Chassis Dimensions | 796mm (L)*435mm (W)*43mm (H). |
| Packaging Dimensions | 1000mm (L)*600mm (W)*250mm (H)。 |
| Weight | Max 25kg (varies by configuration). |
