SERVER

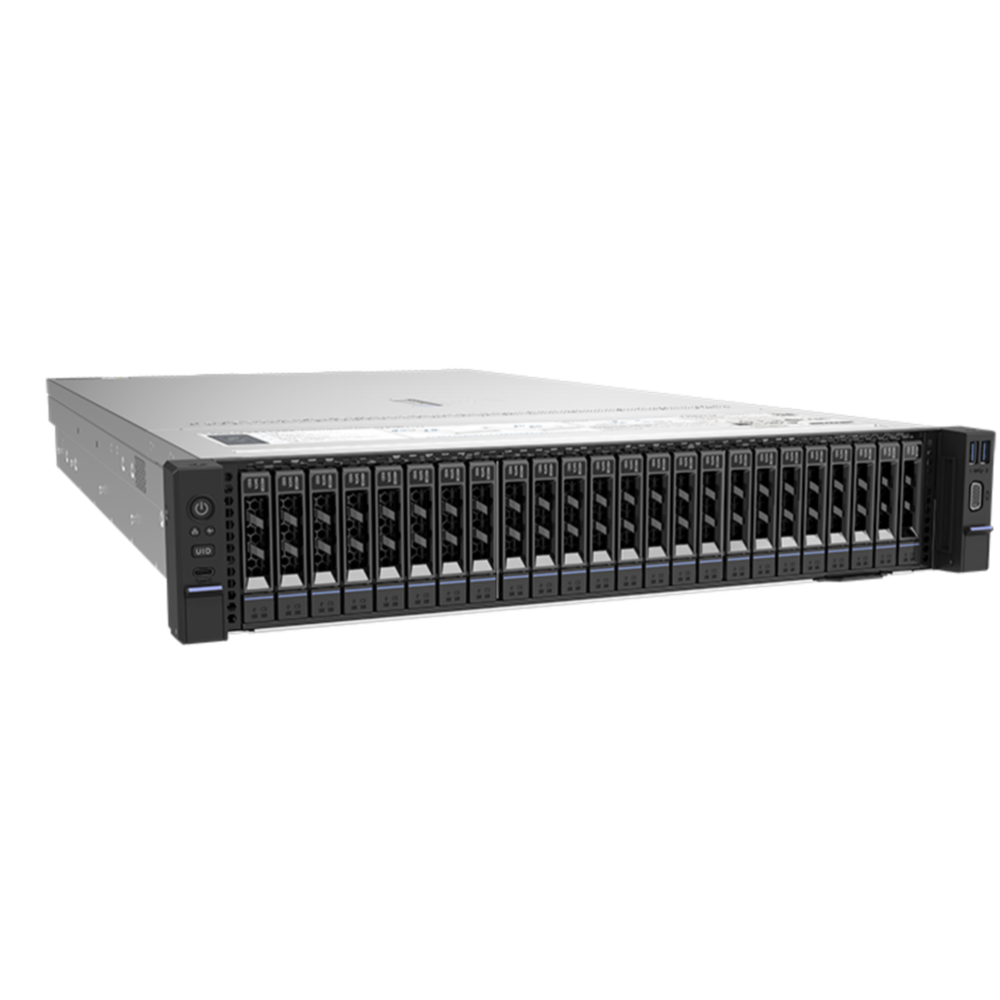

EC-R620 G50
The EC-R620 G50 is a premium 2U rack server powered by 4th/5th Gen Intel® Xeon® Scalable processors. Designed for flexible resource allocation to meet diverse industry demands, it excels in cloud computing, HPC, cloud storage, big data, virtualization, enterprise systems, and more.
Products Specification
| Processor | Supports 2*4th/5th Gen Intel® Xeon® Scalable Processors (TDP 385W). |
| Memory | 32*DDR5 slots, up to 5600MHz. Supports memory mirroring, hot spare, fault isolation, and CXL expansion (additional 16 slots). |
| Storage Controller | Supports RAID 0/1/10/5/50/6/60. Features 4G/8G cache supercapacitor protection, disk roaming, remote Web configuration, secure boot, solid-state algorithms, and serial port remote debug. |
| Local Storage | Max 20*3.5″ or 43*2.5″ drives (36x NVMe compatible). Internal: 2*SATA/PCIe M.2, 1*onboard eMMC. Onboard support for 16*SATA drives (no external controller required). |
| Network Interfaces | 1*OCP 3.0 slot with NCSI. Optional interfaces: 2*1GE, 2*10GE, 2*25GE, 2*100GE, 2*200GE. |
| PCIe Expansion | 17*PCIe 5.0 slots + 2*OCP 3.0 slots. |
| Additional Interfaces | Rear: 1*RJ-45 management port, 2*USB 3.0, 1*VGA. Front: Optional 2*USB 3.0 + VGA or USB 2.0. Internal: 1*USB 3.0. |
| Power Supply | 800W/1300W/2000W/2700W CRPS Titanium/Platinum PSU (hot-swappable, 1+1 redundant). Voltage: 100-240Vac (refer to nameplate). |
| Fans | 6*hot-swappable fans (N+2 redundancy). |
| Management | Integrated BMC with 1Gbps RJ-45 port. Supports Redfish, SNMP, IPMI 2.0, HTML5/iKVM remote control. BMC dual-flash backup. |
| OS Support | Windows Server, RHEL, SLES, CentOS, Ubuntu, VMware ESXi, Kylin, RedFlag, etc. |
| Operating Temperature | 5°C ~ 45°C |
| Chassis Dimensions | 770mm (L)*446mm (W) (without ears) / 482mm (W) (with ears) *87mm (H). |
| Packaging Dimensions | 1000mm (L)*600mm (W)*260mm (H). |
| Weight | Max 40kg (varies by configuration). |
