SERVER
EC-R640 G50

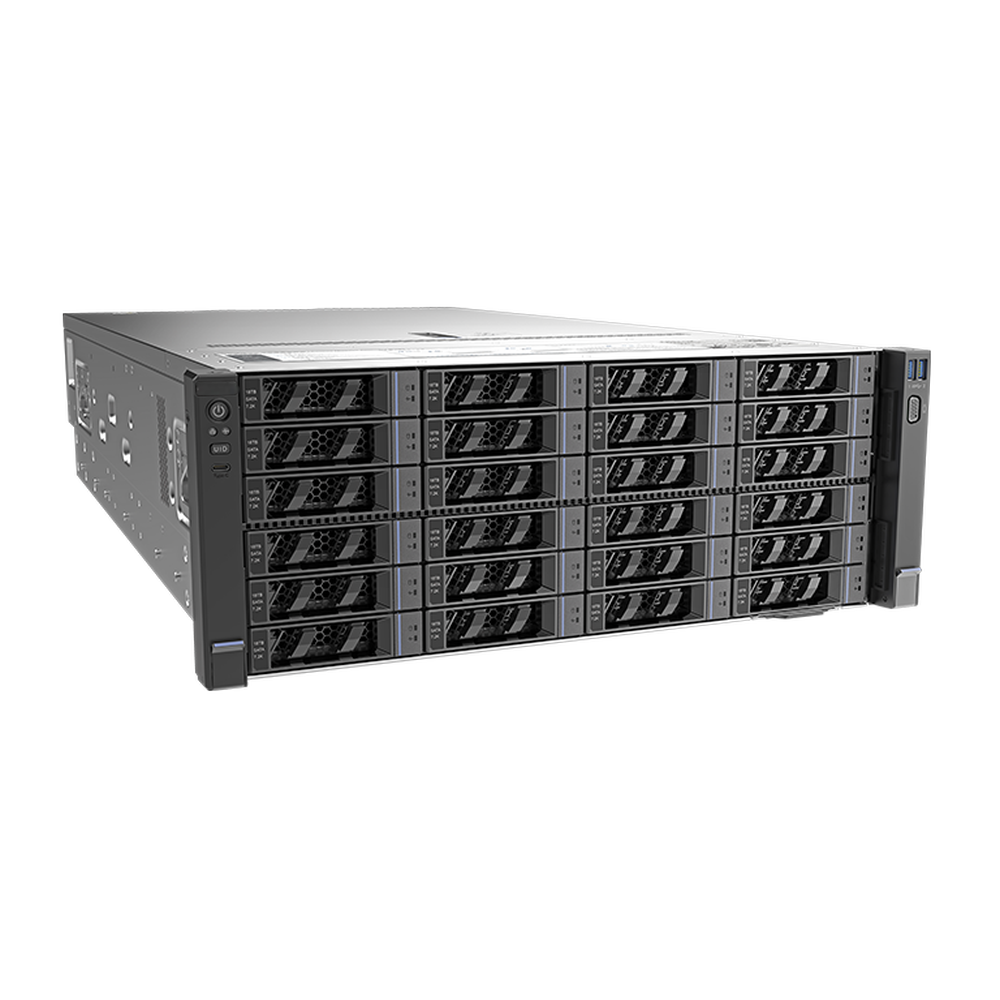

The EC-R640 G50 is a 4U high-density storage server based on 4th Gen Intel® Xeon® Scalable processors. It offers massive storage capacity, outstanding computing performance, rich I/O expansion capabilities, and a lightweight design. It is built to meet demanding application requirements for large capacity, high performance, scalability, and reliability—ensuring stable operation for critical business workloads.
Products Specification
| Processor | Supports 2*4th/5th Gen Intel® Xeon® Scalable Processors. |
| Memory | 32*DDR5 slots, up to 5600MHz. Supports memory mirroring, hot spare, fault isolation, and CXL expansion (additional 16 slots). |
| Storage Controller | Supports RAID 0/1/10/5/50/6/60. RAID controller features cache supercapacitor protection, disk roaming, remote Web configuration, and secure boot. |
| Local Storage | Max 24*3.5″ or 4*2.5″ hot-swappable drives (NVMe compatible). Internal: 2*SATA/PCIe M.2, 1*onboard EMMC. |
| Network Interfaces | 1*OCP 3.0 slot with NCSI. Optional OCP 3.0 interfaces: 2*1GE, 2*10GE, 2*25GE, 2*100GE, 2*200GE. |
| PCIe Expansion | 10*PCIe 5.0 slots + 1*OCP slot. |
| Additional Interfaces | Rear: 1*RJ-45 management port, 2*USB 3.0, 1*VGA. Front: 2*USB 3.0. |
| Power Supply | 800W/1300W/2000W/2200W CRPS Platinum PSU (hot-swappable, 1+1 redundant). Voltage: 100~240Vac (refer to nameplate). |
| Fans | 4*hot-swappable fans 。 |
| Management | Integrated BMC with 1Gbps RJ-45 port. Supports Redfish, SNMP, IPMI 2.0, HTML5/iKVM remote control. BMC dual-flash backup. |
| OS Support | Windows Server, RHEL, SLES, CentOS, Ubuntu, VMware ESXi, Kylin, RedFlag, etc. |
| Operating Temperature | 5°C ~ 45°C |
| Chassis Dimensions | 798mm (L)*446mm (W)*175.5mm (H). |
| Packaging Dimensions | 1050mm (L)*650mm (W)*480mm (H)。 |
| Weight | Max 58kg (varies by configuration). |
