SERVER
R810 E50M
The R810 E50M is a 1U dual-socket high-density rack server equipped with 4th/5th Gen Intel® Xeon® Scalable processors.
It integrates performance, density, and scalability to double data center computing density and space utilization, significantly reducing operational costs. Ideal for cloud computing and data processing scenarios.
Products Specification
| Model | R810 E50M |
| Processor | Supports 2*4th/5th Gen Intel® Xeon® Scalable Processors. |
| Memory | 32*DDR5 slots, up to 5600MHz.Supports memory mirroring, hot spare, fault isolation, and XL expansion (additional 16 slots). |
| Storage Controller | Supports RAID 0/1/10/5/50/6/60.RAID controller features cache supercapacitor protection, disk roaming, remote Web configuration, and secure boot. |
| Local Storage | Max 4*3.5″ or 10*2.5″ hot-swappable drives (NVME compatible).Internal: 2*SATA/PCIe M.2, 1 *onboard EMMC. |
| Network Interfaces | 1*OCP 3.0 slot with NCSI.Optional OCP 3.0 interfaces: 2* 1GE, 2* 10GE, 2*25GE, 2* 100GE, 2*200GE. |
| PCIe Expansion | 2*PCIe 5.0 slots + 1*OCP 3.0 slot. |
| Additional Interfaces | Rear: 1*RJ-45 management port, 2*USB 3.0, 1*VGA. Front: 2*USB 3.0.Internal: 1*USB 3.0. |
| Power Supply | 1300W/2000W/2200W CRPS Platinum PSU (hot-swappable, 1+1 redundant).Voltage: 100~240Vac (refer to nameplate). |
| Fans | 8*hot-swappable fans (N+1 redundancy). |
| Management | Integrated BMC with 1Gbps RJ-45 port. Supports Redfish, SNMP, IPMI 2.0, HTMLS/iK VM remote control.BMC dual-flash backup. |
| OS Support | Windows Server, RHEL, SLES, CentOS, Ubuntu, VMware ESXi, Kylin, RedFlag, etc. |
| Operating Temperature | 5°C ~ 45°C |
| Chassis Dimensions | 796mm (L)*435mm (W)*43mm (H). |
| Packaging Dimensions | 1000mm (L)*600mm (W)*260mm (H). |
| Weight | Max 25kg (varies by configuration). |
Products View

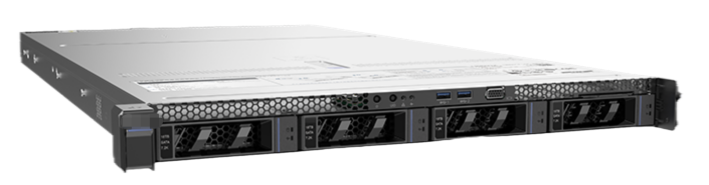

4*3.5-inch hard drives model
Optional 4-disk or 10-disk chassis, supporting 4 x 3.5-inch hard drives or 10 x 2.5-inch hard drives
It supports 2 X16 slots and one OCP slot
Products Features
- 1 U Height, Double Computing Power per Unit of Space
- Supports 2*4th/5th Gen Intel® Xeon® Scalable processors, with up to 64 cores per CPU for robust performance.
- Up to 32*DDR5 DIMM slots, 5600MHz max frequency, 75% memory bandwidth increase.
- Flexible expansion with OCP NICs and PCIe slots (supports PCIe 5.0, 100% faster transfer rates).
Order Information
| Part Number | Product Configuration | ||
| Front Configuration | Rear Configuration | Kits | |
| A04000 ABNN | 4*3.5 ” drives（SAS/SATA）2*USB 3.0 | 2*PCIe 5.0 x16 Slots1*RJ-45 Management interface2*USB 3.0 interface1*VGA1300W Redundant Power | 2*Heat Sinks，TDP≥270W1*raid card connection cable， Adapted to 95 series RAID cards4*3.5 hard drive brackets， Compatible with 2.5″ drives |
| S10000 ABNN | 10*2.5″ drives（SAS/SATA）2*USB 3.0 | 2*PCIe 5.0 x16 Slots1*RJ-45 Management interface2*USB 3.0 Interface1*VGA1300W Redundant Power | 2* Heat Sinks，TDP≥270W1*raid card connection cable， Adapted to 95 series RAID cards10*2.5 hard drive brackets， Compatible with 2.5″ drives |
