SERVER

Extreme Performance with Scalability

R820 E50M

The R820 E50M is a premium 2U rack server powered by 4th/5th Gen Intel® Xeon® Scalable processors. Designed for flexible resource allocation to meet diverse industry demands, it excels i n cloud computing, HPC, cloud storage, big data, virtualization, enterprise systems, and more.

Products Specification

ModelR820 E50M
ProcessorSupports 2*4th/5th Gen Intel Xeon® Scalable Processors (TDP 385W).
Memory32*DDR5 slots, up to 5600MHz.Supports memory mirroring, hot spare, fault isolation, and XL expansion (additional 16 slots).
Storage ControllerSupports RAID 0/1/10/5/50/6/60.Features 4G/8G cache supercapacitor protection, disk roaming, remote Web configuration, secure boot, solid-state algorithms, and serial port remote debug.
Local StorageMax 16*3.5″ or 28*2.5″ drives (24x NVMe compatible).Internal: 2*SATA/PCIe M.2, 1 *onboard eMMC.Onboard support for 16*SATA drives (no external controller required).
Network Interfaces1*OCP 3.0 slot with NCSI.Optional interfaces: 2*1GE, 2*10GE, 2*25GE, 2* 100GE, 2*200GE.
PCIe Expansion8*PCIe 5.0 slots + 1*OCP 3.0 slots.
Additional InterfacesRear: 1*RJ-45 management port, 2*USB 3.0, 1*VGA.Front: Optional 2*USB 3.0 + VGA or USB 2.0. Internal: 1*USB 3.0.
Power Supply800W/1300W/2000W/2700W CRPS Titanium/Platinum PSU (hot-swappable, 1+1 redundant). Voltage: 100-240Vac (refer to nameplate).
Fans6*hot-swappable fans (N+2 redundancy).
ManagementIntegrated BMC with 1Gbps RJ-45 port.Supports Redfish, SNMP, IPMI 2.0, HTML5/iKVM remote control.BMC dual-flash backup.
OS SupportWindows Server, RHEL, SLES, CentOS, Ubuntu, VMware ESXi, Kylin, RedFlag, etc.
Operating Temperature5°C ~ 45°C
Chassis Dimensions770mm (L)*446mm (W) (without ears) / 482mm (W) (with cars) *87mm (H).
Packaging Dimensions1000mm (L)*600mm (W)*260mm (H).
WeightMax 40kg (varies by configuration).

Products View

12*3.5-inch SAS/SATA/NVME Model

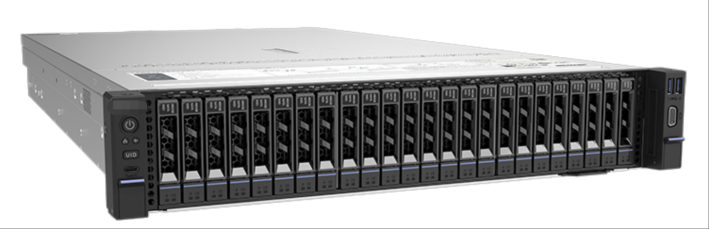

24*2.5-inch SAS/SATA/NVME Model

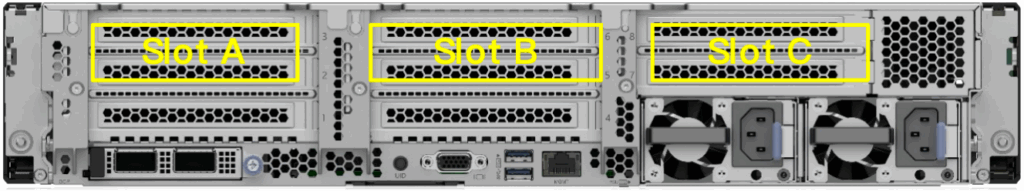

  • The C position supports 4*2.5(SAS/SATA/NVMe) /2*2.5(SAS/SATA) /2*full height PCIe.
  • The A/B position supports 2*3.5(SAS/SATA).
  • The A/B position can be inserted a baffle when the Riser is not on the bezel.

Products Features

  • Supports 2*4th/5th Gen Intel® Xeon® Scalable processors, up to 64 cores per CPU for unparalleled computing power.
  • 32*DDR5 DIMM slots, 5600MHz max frequency, 75% memory bandwidth increase.
  • Up to 16*3.5″ or 28*2.5″ drives, NVMe SSD compatibility for customizable storage.
  • Flexible expansion with OCP NICs and PCIe slots (supports PCIe 5.0, 100% faster transfer rates).

Order Information-12 disk slots

Part NumberProduct Configuration
Front ConfigurationRear ConfigurationKits
A12000 ABNN12*3.5″ drives（SATA/SAS）2*USB3.0+1*VGA4*x8+2*x16 PCIE 5.01*RJ45 Management Interface2*USB3.01*VGA
1300W Redundant Power		2* Heat Sinks，TDP≥270W
2*raid card connection cable，adapted to 95 series raid cards
12*3.5 hard drive brackets，compatible with 2.5″ drives
A12000 ABCN12*3.5″ drives（SATA/SAS）2*USB3.0+1*VGA6*x8+2*x16 PCIE 5.01*RJ45 Management Interface2*USB3.01*VGA
1300W Redundant Power		2* Heat Sinks，TDP≥270W
2*raid card connection cable， adapted to 95 series raid cards
12*3.5 hard drive brackets，compatible with 2.5″ drives
A12000 ABN212*3.5″ drives（SATA/SAS）2*USB3.0+1*VGA2*2.5″ drives（SATA/SAS）4*x8+2*x16 PCIE 5.01*RJ45 Management Interface2*USB3.01*VGA
1300W Redundant Power		2*heat sinks，TDP≥270W
2*raid card connection cable， adapted to 95 series raid cards
12*3.5 hard drive bracket，compatible with 2.5″ drives
2*2.5 hard drive brackets
A12000 AB2212*3.5″ drives（SATA/SAS）2*USB3.0+1*VGA4*2.5″ drives（SATA/SAS/NVME）4*x8+2*x16 PCIE 5.01*RJ45 management interface2*USB3.01*VGA
1300W redundant power		2* Heat Sinks，TDP≥270W
2*raid card connection cable， adapted to 95 series raid cards
12*3.5 hard drive bracket，compatible with 2.5″ drives
4*2.5 inches hard bracket
A12000 ABC2
( Custom)		12*3.5″ drives（SATA/SAS）2*USB3.0+1*VGA2*2.5″ drives（SATA/SAS）6*x8+2*x16 PCIE 5.01*RJ45 management interface2*USB3.01*VGA
1300W redundant power		2* Heat Sinks，TDP≥270W
2*raid card connection cable，adapted to 95 series raid cards
12*3.5 hard drive brackets，compatible with 2.5″ drives
2*2.5 hard drive brackets
Part NumberProduct Configuration
Front ConfigurationRear ConfigurationKits
E12000 ABNN12*3.5″ drives（SATA/SAS）EXP2*USB3.0+1*VGA4*x8+2*x16 PCIE 5.01*RJ45 management interface2*USB3.01*VGA
1300W redundant power		2* Heat Sinks，TDP≥270W
1*raid card connection cable，adapted to 95 series raid cards
12*3.5 hard drive brackets，compatible with 2.5″ drives
E12000 ABCN12*3.5″ drives（SATA/SAS）EXP2*USB3.0+1*VGA6*x8+2*x16 PCIE 5.01*RJ45 management interface2*USB3.01*VGA
1300W redundant power		2* Heat Sinks，TDP≥270W
1*raid card connection cable，adapted to 95 series raid cards
12*3.5 hard drive brackets，compatible with 2.5″ drives
E12000 ABN212*3.5″ drives（SATA/SAS）EXP2*USB3.0+1*VGA2*2.5″ drives（SATA/SAS）4*x8+2*x16 PCIE 5.01*RJ45 management interface2*USB3.01*VGA
1300W redundant power		2* Heat Sinks，TDP≥270W
1*raid card connection cable，adapted to 95 series raid cards
12*3.5 hard drive brackets，compatible with 2.5 ” drives
2*2.5 hard drive brackets
E12000 AB2212*3.5″ drives（SATA/SAS）EXP2*USB3.0+1*VGA4*2.5″ drives（SATA/SAS/NVME）4*x8+2*x16 PCIE 5.01*RJ45 management interface2*USB3.01*VGA
1300W redundant power		2* Heat Sinks，TDP≥270W
1*raid card connection cable，adapted to 95 series raid cards
12*3.5 hard drive brackets，compatible with 2.5″ drives
4*2.5 hard drive brackets
E12000 ABC2
（Custom）		12*3.5″ drives（SATA/SAS）EXP2*USB3.0+1*VGA2*2.5″ drives（SATA/SAS）6*x8+2*x16 PCIE 5.01*RJ45 management interface2*USB3.01*VGA
1300W redundant power		2* Heat Sinks，TDP≥270W
1*raid card connection cable，adapted to 95 series raid cards
12*3.5 hard drive brackets，compatible with 2.5″ drives
2*2.5 hard drive brackets
Part NumberProduct Configuration
Front ConfigurationRear ConfigurationKits
N12000 ABNN12*3.5″ drives（SATA/SAS/NVME）2*USB3.0+1*VGA4*x8+2*x16 PCIE 5.01*RJ45 management interface2*USB3.01*VGA
1300W redundant power		2* Heat Sinks，TDP≥270W
2*raid card connection cable，adapted to 95 series raid cards
12*3.5 hard drive brackets，compatible with 2.5″ drives
N12000 ABCN12*3.5″ drives（SATA/SAS/NVME）2*USB3.0+1*VGA6*x8+2*x16 PCIE 5.01*RJ45 management interface2*USB3.01*VGA
1300W redundant power		2* Heat Sinks，TDP≥270W
2*raid card connection cable，adapted to 95 series raid cards
12*3.5 hard drive brackets，compatible with 2.5″ drives
N12000 ABN212*3.5″ drives（SATA/SAS/NVME）2*USB3.0+1*VGA2*2.5″ drives（SATA/SAS）4*x8+2*x16 PCIE 5.01*RJ45 management interface2*USB3.01*VGA
1300W redundant power		2* Heat Sinks，TDP≥270W
2*raid card connection cable，adapted to 95 series raid cards
12*3.5 hard drive bracket，compatible with 2.5″ drives
2*2.5 hard drive brackets
N12000 AB2212*3.5″ drives（SATA/SAS/NVME）2*USB3.0+1*VGA4*2.5″ drives（SATA/SAS/NVME）4*x8+2*x16 PCIE 5.01*RJ45 management interface2*USB3.01*VGA
1300W redundant power		2* Heat Sinks，TDP≥270W
2*raid card connection cable，adapted to 95 series raid cards
12*3.5 hard drive bracket，compatible with 2.5″ drives
4*2.5 hard drive brackets
N12000 ABC2
（Custom）		12*3.5″ drives（SATA/SAS/NVME）2*USB3.0+1*VGA2*2.5″ drives（SATA/SAS）6*x8+2*x16 PCIE 5.01*RJ45 management interface2*USB3.01*VGA
1300W redundant power		2* Heat Sinks，TDP≥270W
2*raid card connection cable，adapted to 95 series raid cards
12*3.5 hard drive bracket，compatible with 2.5″ drives
2*2.5 hard drive bracket

Order Information-24 disk slots

Part NumberServer Configuration
Front PortsRear PortsServer Suits
S24000 ABNN24*2.5” (SATA/SAS)2*USB3.0+1*VGA4*x8+2*x16 PCIE 5.01*RJ45 management2*USB3.01*VGA
1300W redundant power supplies		2*heat sinks, TDP≥270W
3*raid card cable applicable for 95 series of raid cards
24*2.5” hard drive brackets
S24000 ABCN24*2.5”(SATA/SAS)2*USB3.0+1*VGA6*x8+2*x16 PCIE 5.01*RJ45 management2*USB3.01*VGA
1300W redundant power supplies		2*heat sinks, TDP≥270W
3*raid card cable applicable for 95 series of raid cards
24*2.5” hard drive brackets
S24000 ABN224*2.5”(SATA/SAS)2*USB3.0+1*VGA2*2.5”(SATA/SAS)4*x8+2*x16 PCIE 5.01*RJ45 management2*USB3.01*VGA
1300W redundant power supplies		2*heat sinks, TDP≥270W
3*raid card cable applicable for 95 series of raid cards
26*2.5” hard drive brackets
S24000 AB2224*2.5”(SATA/SAS)2*USB3.0+1*VGA4*2.5”(SATA/SAS/NVME)4*x8+2*x16 PCIE 5.01*RJ45 management2*USB3.01*VGA
1300W redundant power supplies		2*heat sinks, TDP≥270W
3*raid card cable applicable for 95 series of raid cards
28*2.5” hard drive brackets
S24000 ABC2
(custom)		24*2.5”(SATA/SAS)2*USB3.0+1*VGA2*2.5”(SATA/SAS)6*x8+2*x16 PCIE 5.01*RJ45 management2*USB3.01*VGA
1300W redundant power supplies		2*heat sinks, TDP≥270W
3*raid card cable applicable for 95 series of raid cards
26*2.5” hard drive brackets
Part NumbersProduct Configurations
FrontRearKits
E24000 ABNN24*2.5”(SATA/SAS)EXP2*USB3.0+1*VGA4*x8+2*x16 PCIE 5.01*RJ45management2*USB3.01*VGA
1300W redundant power supplies		2*heat sinks, TDP≥270W
2*raid card cable applicable for 95 series of raid cards
24*2.5” hard drive brackets
E24000 ABCN24*2.5”(SATA/SAS)EXP2*USB3.0+1*VGA6*x8+2*x16 PCIE 5.01*RJ45management2*USB3.01*VGA
1300W redundant power supplies		2*heat sinks, TDP≥270W
2*raid card cable applicable for 95 series of raid cards
24*2.5” hard drive brackets
E24000 ABN224*2.5”(SATA/SAS)EXP2*USB3.0+1*VGA2*2.5”(SATA/SAS)4*x8+2*x16 PCIE 5.01*RJ45management2*USB3.01*VGA
1300W redundant power supplies		2*heat sinks, TDP≥270W
2*raid card cable applicable for 95 series of raid cards
26*2.5” hard drive brackets
E24000 AB2224*2.5”(SATA/SAS)EXP2*USB3.0+1*VGA4*2.5”(SATA/SAS/NVME)4*x8+2*x16 PCIE 5.01*RJ45management2*USB3.01*VGA
1300W redundant power supplies		2*heat sinks, TDP≥270W
2*raid card cable applicable for 95 series of raid cards
28*2.5” hard drive brackets
E24000 ABC2
(custom)		24*2.5”(SATA/SAS)EXP2*USB3.0+1*VGA2*2.5”(SATA/SAS)6*x8+2*x16 PCIE 5.01*RJ45management2*USB3.01*VGA
1300W redundant power supplies		2*heat sinks, TDP≥270W
2*raid card cable applicable for 95 series of raid cards
26*2.5” hard drive brackets
