STORAGE

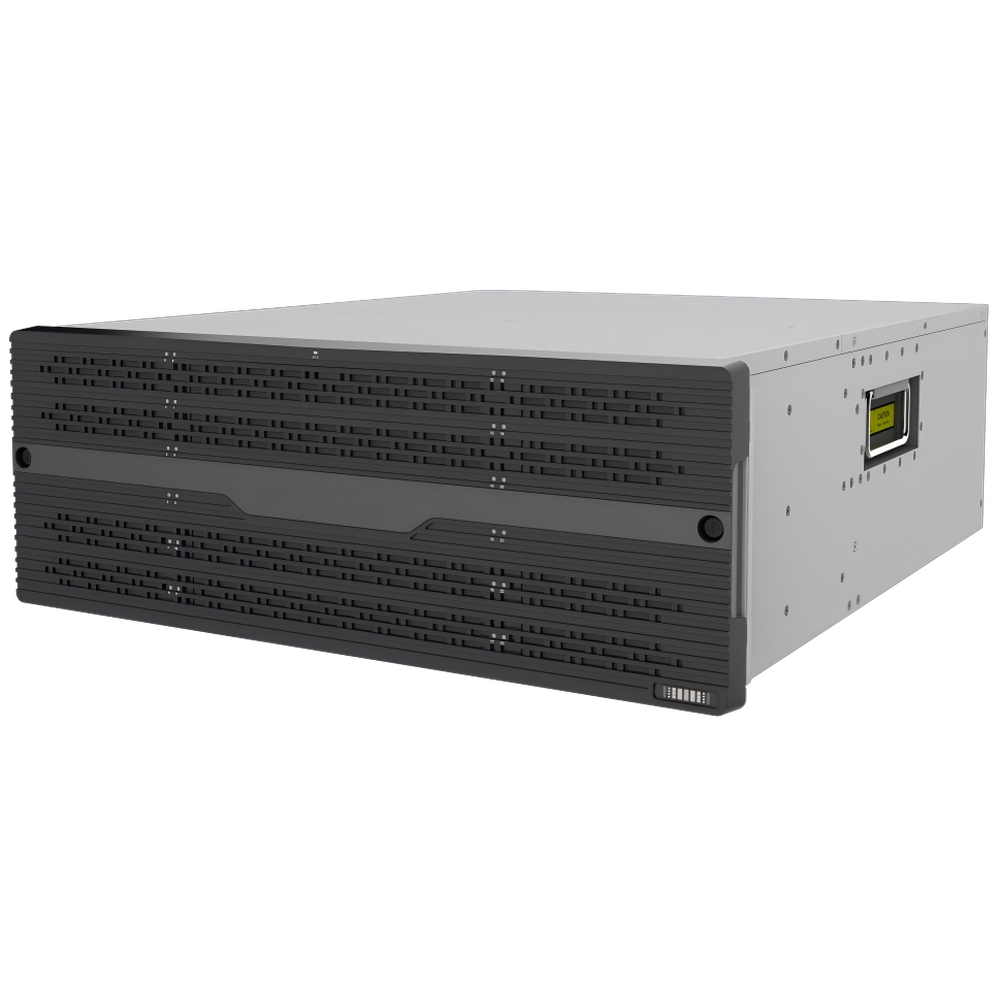

EN1824
EN1800 series storage products are a new generation of storage products with extremely high cost performance tailored for AIOT solutions by Uniview Technology. EN1800 series storage products integrate data management, permanent data protection, block virtualization RAID technology, and the industry’s top disk management technology. They have the characteristics of high performance, high reliability, strong expansion, easy management, and easy maintenance. They also integrate iSCSI, FC, NFS, and CIFS storage protocols, and can provide block storage and file storage at the same time, providing users with a full range of storage solutions.
Products Specification
| Item | Description |
| Number of controllers | 1 |
| processor | Intel 64-bit multi-core processor |
| Single controller memory | Standard 32GB, expandable to 128GB |
| Network Interface | 5 2.5Gb Ethernet ports 4-port 2.5Gb Ethernet port (optional) 2-port 10Gb Ethernet port (optional) 4-port 10Gb Ethernet port (optional) |
| PCI-E slot | 3 |
| Backend extension interface | 2 4x12Gbps Mini SAS HD ports (optional) |
| USB interface | 2 |
| Serial Port | 1 |
| HDMI interface | 2 |
| Disk Type | SATA/SSD |
| Disk capacity | 4~20TB |
| Number of disk channels | twenty four |
| Battery | Standard 1/Maximum 2 |
| Power Module | Standard 1/Maximum 2 |
| Power Input | AC power supply: 100V~127V/200V~240V AC; 60Hz/50Hz |
| Weight (Fully configured disk) | <46kg |
| Power consumption (full disk configuration) | <452W |
| Dimensions (H×W×D) | 175mm X 482mm X589mm (H×W×D) |
| Certification | CE, FCC, CB, RoHS, WEEE, CCC, CQC |
| Operating temperature | 5°C～40°C |
| Recommended operating temperature | 10°C～35°C |
| IPSAN Function | describe |
| Features | Mirroring, snapshot rollback, snapshot view, snapshot copy, consistent snapshot group, NAS backup, worm, heterogeneous virtualization, block virtualization RAID-NT |
| RAID | Supports JBOD, RAID 0, 1, 10, 5, 6, 50, RAID-NT Supports multiple hot backup modes such as automatic blank disk global hot backup and dedicated hot backup |
| Maximum number of logic resources | 1024 |
| Protocol | iSCSI, NFS (V2, V3, V4), CIFS/SMB, FTP |
| Supported operating systems | Windows, Linux, AIX, HP-UNIX, Solaris, VMware, etc. |
| Alerts | Indicator, email, SNMP Trap, SMS, digital tube, etc. |
